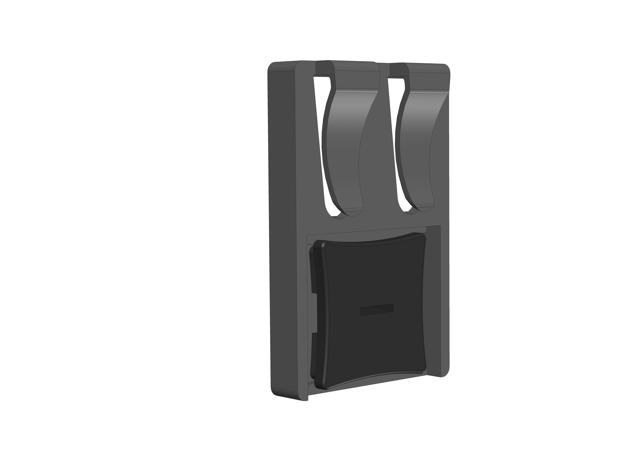

T-Clip Document Kit

SMART DOCUMENT PRESENTATION.

Product characteristics:

• Plastic document holder with curved out prongs with shape retention memory.
• Holds 1 to 5 standard 80 g paper sheets (up to A3 format).
• To be fixed with 8 mm or 10 mm T-Clip instant mounting clips (Art. 920201/920202/920203) on all 8/10 mm aluminium profiles.
• Can be used horizontally or vertically thanks to its anti-rotation function.

Unique selling point:

• No need for tape or tack to hold documents.
• Its special material elasticity will adapt to a number of documents whilst providing the same holding strength.
• Documents can be placed at eye level and out of the way.
• Documents remain accessible for consultation and annotation and can quickly and easily be changed thanks to its curved out prongs.
• The use of T-Clips avoids the need for drill holes and unnecessary damage to the aluminium profiles.
• Made in France.

Usage:

• Can be fixed on all aluminium profiles such as workstation, machine carters, machine protections, quality stations, packaging stations, etc.
• Can be used for work orders, mounting instructions, etc.

Technical characteristics:

• Polyoxymethylene (POM).
• Recyclability: 99,6 % (specialized recycling channels)
• Pull-out resistance with T-Clip: 9 kg.
• Sliding resistance with T-Clip: 5 kg.
• Dimensions: 50 x 32 x 10 mm, 5 g.

Packaging:

• Bulk 12 pieces in front-opening dispensing box, 100% recycled Kraft cardboard box with EAN label, 1 box of 12 pieces: 90 x 90 x 60 mm.
• Or as a set with 1 document holder + T-Clip mounting elements for 8/10 mm profiles.
  1 bag with label containing 1 set: 100 x 150 x 18 mm, 10 g.
  10 bags overpacked in 100% recycled Kraft cardboard box with EAN label: 280 x 175 x 45 mm.

Link to the video
