T-Clip Mounter, 10 mm
25 pcs. | #920202
Mounting accessories on aluminium profiles can be difficult : loss of time, different profile shapes, hard or impossible to remove, specific nut bolts needed. We have the solution for you, the T-clip mounting system.
- The universal mounting system for all aluminium profiles.
- Allows you to fixe elements on aluminum profiles in the blink of an eye.
- The use of T-Clips avoids the need for drill holes and unnecessary damage to the aluminium profiles.
- Can be fixed on workstation, machinery, quality stations, packaging stations, etc.
- Colour
- Quantity
- 25
- Country of Origin
- France
- Number
- 920202
- Material
- TPU (thermoplastic polyurethane)
- Height
- 16 mm
- Length
- 22 mm
- Width/depth
- 22 mm
Product description
The universal mounting system for all aluminium profiles.
Product description:

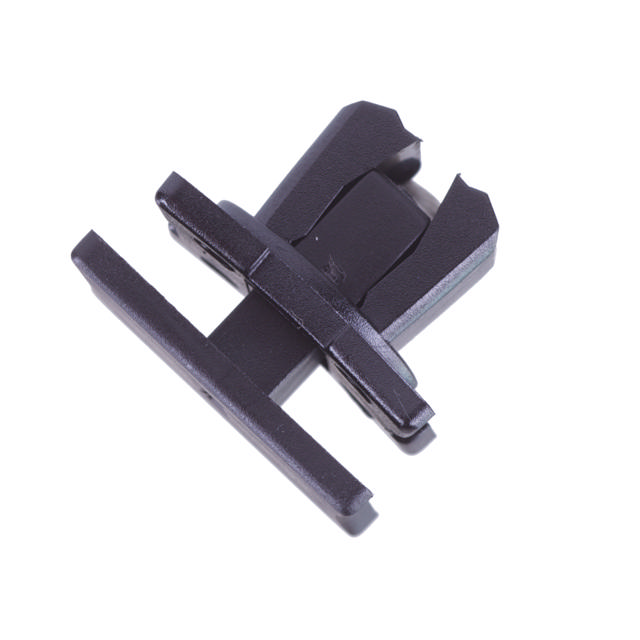

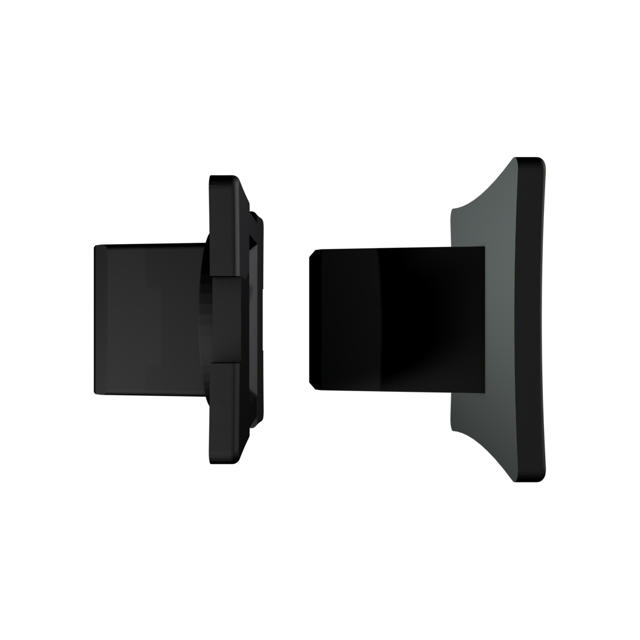

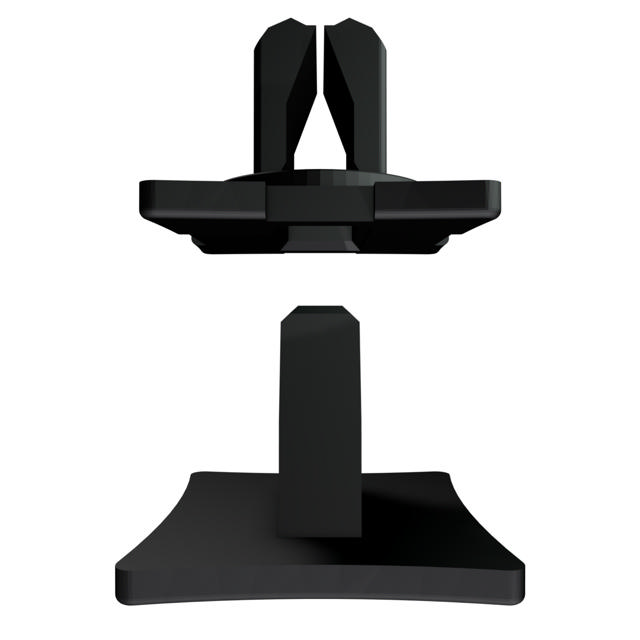

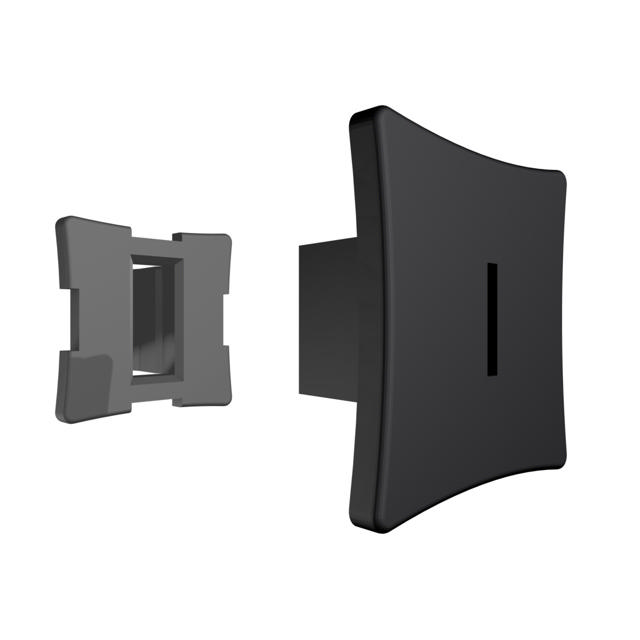

- The T-Clip is composed of an insert and a key that allow you to fixe standard elements or Tarifold Pro accessories on most brands of aluminum profiles with 10 mm grooves.

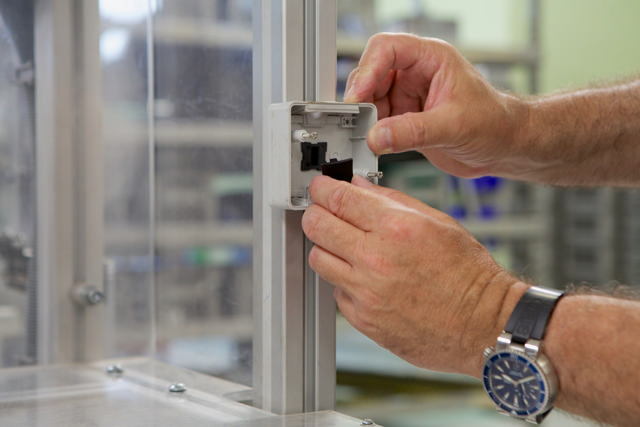

- The insert is inserted through the accessory and into the groove of the profile and the key is then pushed into the insert to lock the accessory into position on the profile.
Product advantages:
- Allows you to fixe elements on aluminum profiles in the blink of an eye. No tools or screws needed!
- Safe push-in grip system.
- Quick removal. Can be reused for another mounting system.
- Packaged in an easy to open dispenser box for easy storage and access to product.
Usage:
- Can be fixed on all aluminium profiles such as workstation, machinery, quality stations, packaging stations, etc.
- Can be used with all T-Pro accessories (document holders, cable holders, magnetic holders, hook, presentation systems).
- Can also be used with standard elements you may have (power switches, electrical raceways, etc.) into which a 15mm diameter hole needs to be drilled in order to insert the T-Clip.
- Works with almost all aluminium profile brands: Apore, Bosch Rexroth, Elcom ITEM, Flexlink, Hepco, Kanya, MayTec, Minitec, Misumi, MK, Modular, Norcan, etc.
Technical characteristics:
- Pull-out resistance with T-Clip: 9 kg.
- Sliding resistance with T-Clip: 5 kg.
- Materiel: Key is made of polypropylene copolymer 100% recyclable (specific channels), and Insert is made of Estane TPU 98 shores 100% recyclable (specific channels).
- Made in France.
